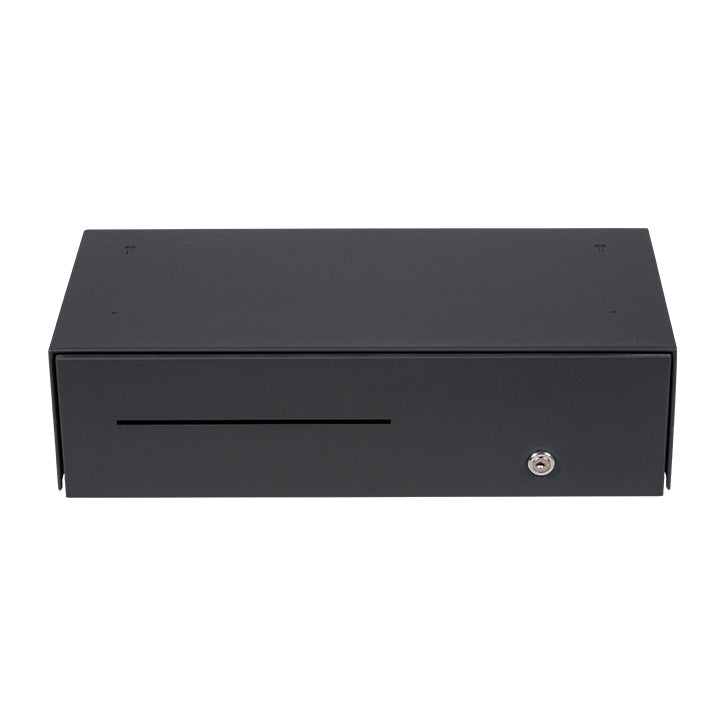

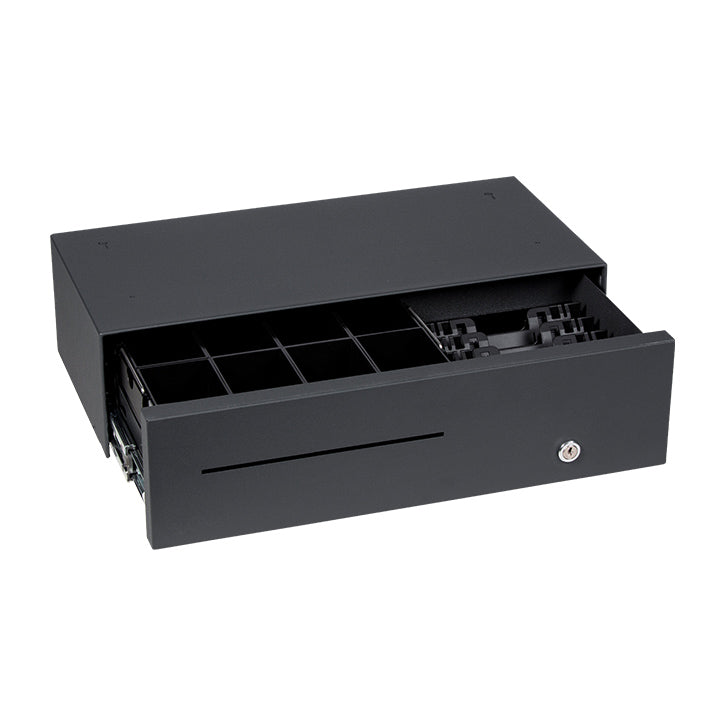

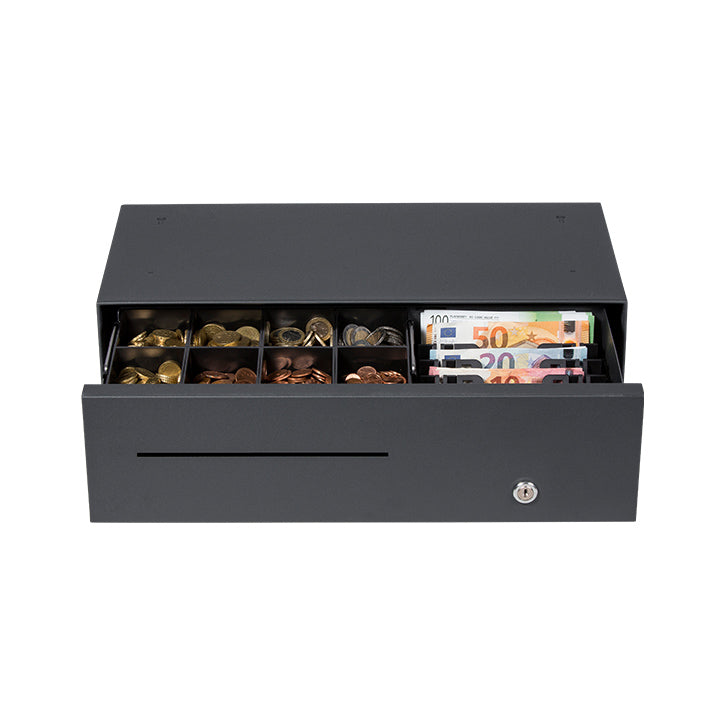

Cash drawer MDS45

*plus VAT

• Short-stroke cash drawer with high capacity and low installation depth
• The optimal solution for confined spaces behind the counter
• Pullout extends only 190 mm
• Separate coin insert with 8 weighable coin cups
• 4 slanted music trays with pressure plate
• Insertion slot for receipts and vouchers
• Universal compartment under the coin tray
• Money insert removable en bloc

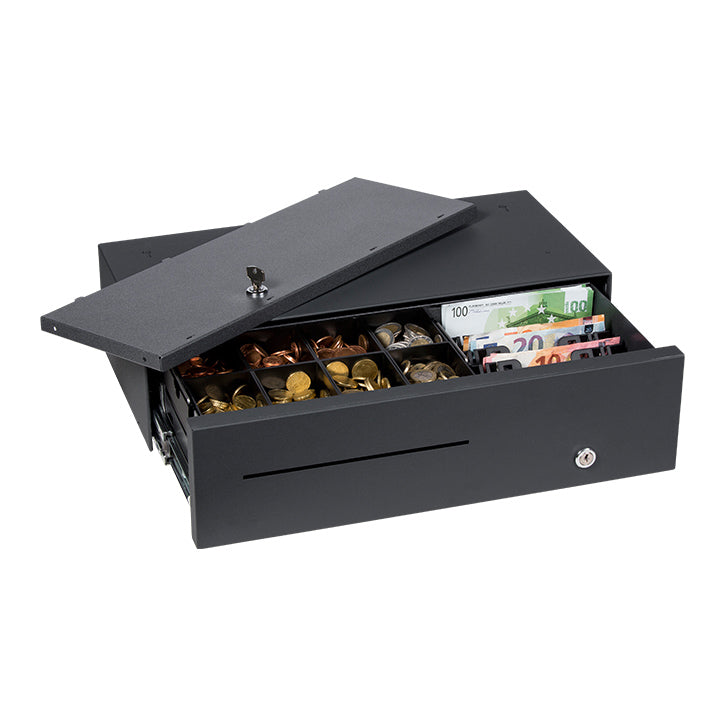

• Removable cash tray with lockable lid (optional)
• Drawer guide via ball bearing runners
• Keyed alike 3-position cylinder lock
• Rugged all steel construction

Delivery within 1-2 working days

• Details
• Technical data
• Scope of delivery

• Installation:
  The cash drawer can be mounted on or under the counter.

  Micro switch:
  A microswitch for status query is integrated.

  Electrical connection options:
  Compatible with all systems.

  Connection cable:
  Separate, plugged 2 m cable to RJ11/RJ12 as standard.

  Lock on the cash drawer:
  Keyed alike 3-position cylinder lock (emergency opening, electr. operation, locked). including 2 keys with 150 locking variants optional.

  Cash tray with lockable lid:
  Lid with 2-position cylinder lock including 2 keys.

• Color: black gray / anthracite (RAL 7021)

  Weight: 10,1 kg

  Voltage: 24 V (12 V on request)

  Width: 460 mm

  Height: 130 mm

  Depth: 230 mm



  Item number:
  29101.053-0020


• • Cash drawer MDS 45 (black gray / anthracite RAL 7021)
  • Separate, plugged 2 m cable to RJ11/RJ12
  • 8 weighable coin cups
  • Removable money insert
  • Lockable lid for the money insert (optional)
  • 2 keys for 3-position cylinder lock and the cover lock (same lock).
