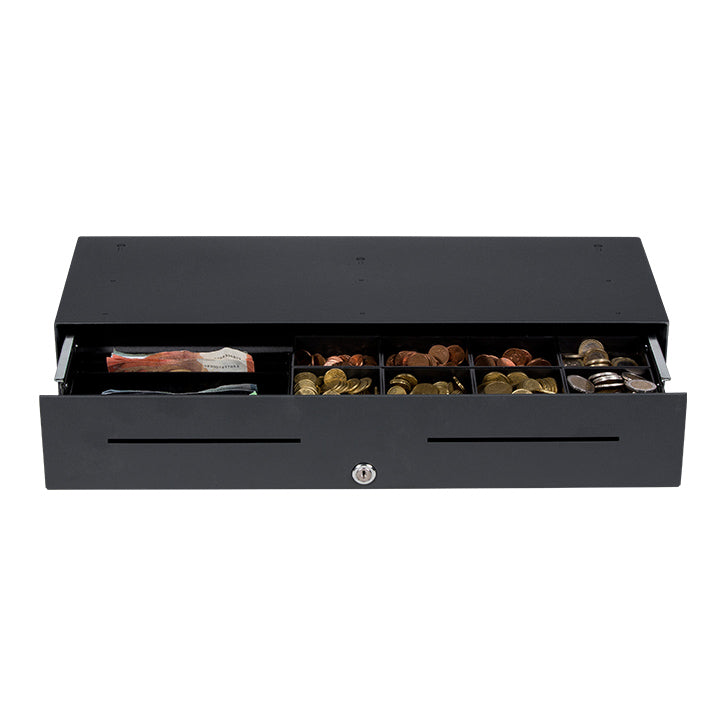

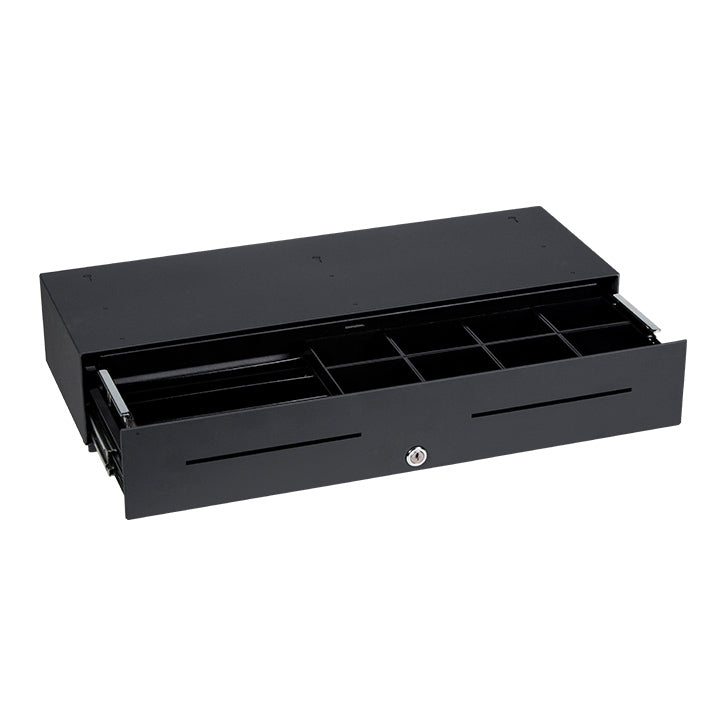

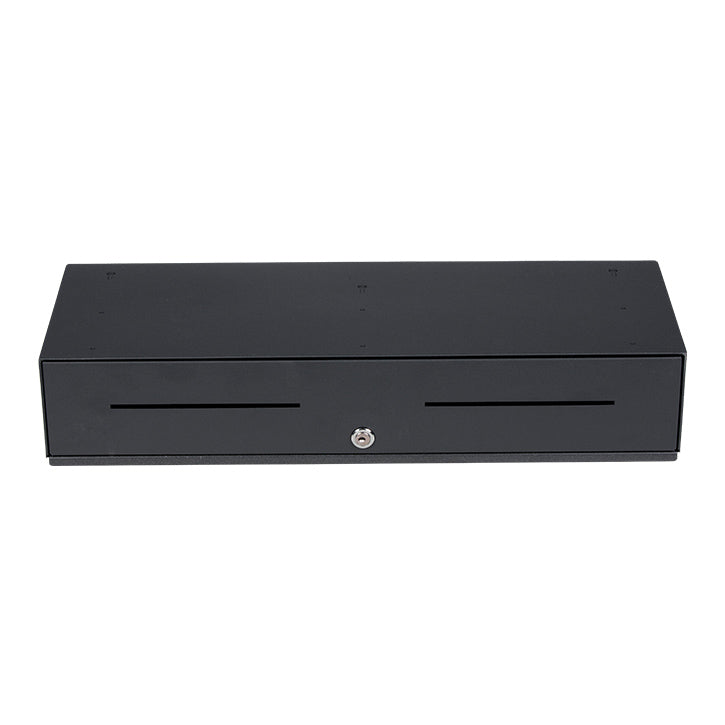

Cash drawer MDS54

*plus VAT

• Short-stroke cash drawer with high capacity and low installation depth
• The optimal solution for confined spaces behind the counters
• Low installation depth for installation and substructure
• Extension extends 160 mm
• Separate coin insert with 8 weighable coin cups
• Banknote insert with slanted pockets
• Receipt pocket under the coin insert
• Double slot for receipts and vouchers
• Money insert removable en bloc
• Removable cash tray with lockable lid
• Drawer guide via ball bearing runners
• Keyed alike 3-position cylinder lock
• Rugged all steel construction

Delivery within 1-2 working days

• Details
• Technical data
• Scope of delivery

• Installation:
  The cash drawer can be mounted on or under the counter.

  Micro switch:
  A microswitch for status query is integrated.

  Electrical connection options:
  Compatible with all systems.

  Connection cable:
  Separate, plugged 2 m cable on RJ11/RJ12 as standard (other systems possible on request).

  Lock on the cash drawer:
  Keyed alike 3-position cylinder lock (emergency opening, electr. operation, locked). including 2 keys with 150 locking variants optional.

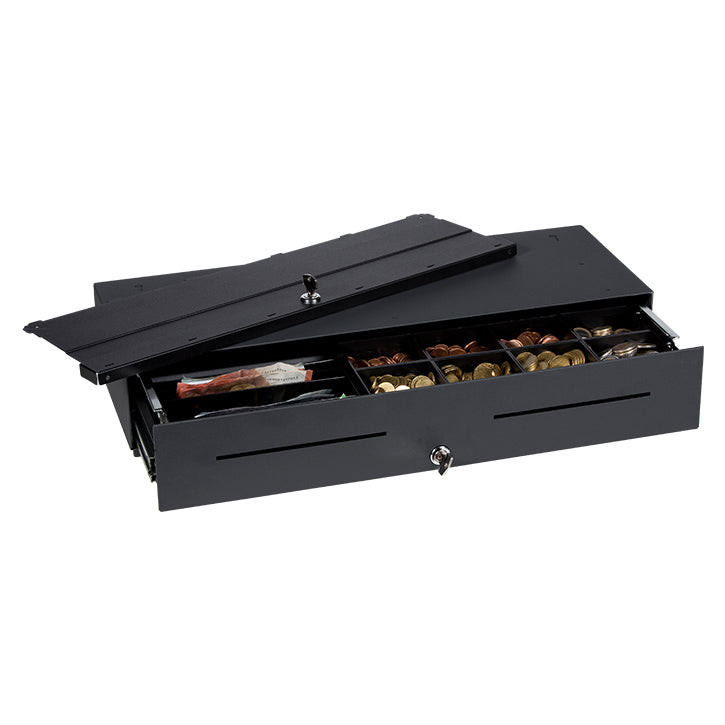

  Cash tray with lockable lid:
  Lid with 2-position cylinder lock including 2 keys.

• Color: black gray / anthracite (RAL 7021)

  Weight: 10.0 kg

  Voltage: 24 V (12 V on request)

  Width: 550 mm

  Height: 110 mm

  Depth: 200 mm

   Item number: 29101.060-0020

• • Cash drawer MDS 54 (black gray / anthracite RAL 7021)
  • Separate, plugged 2 m cable to RJ11/RJ12
  • 8 weighable coin cups
  • Removable money insert
  • Lockable lid for the money insert
  • 2 keys for 3-position cylinder lock and the cover lock (same lock).
