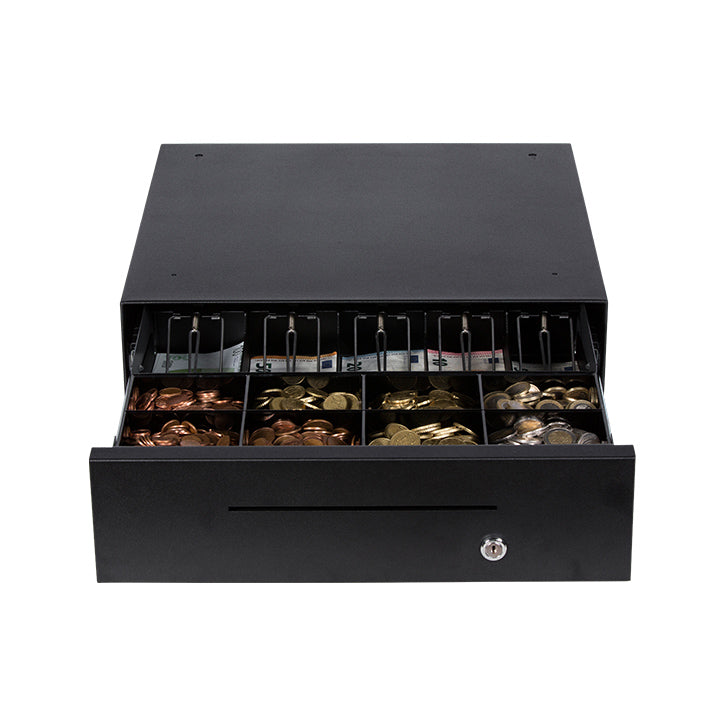

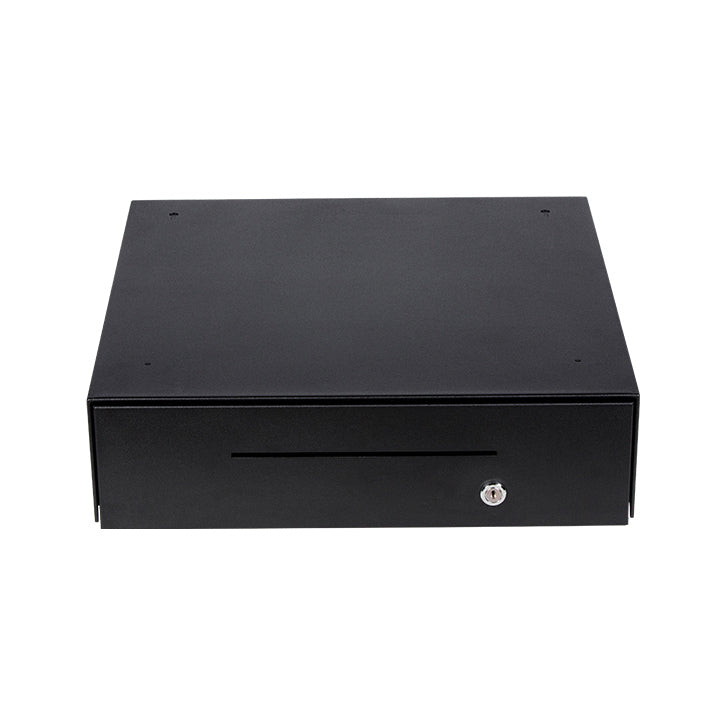

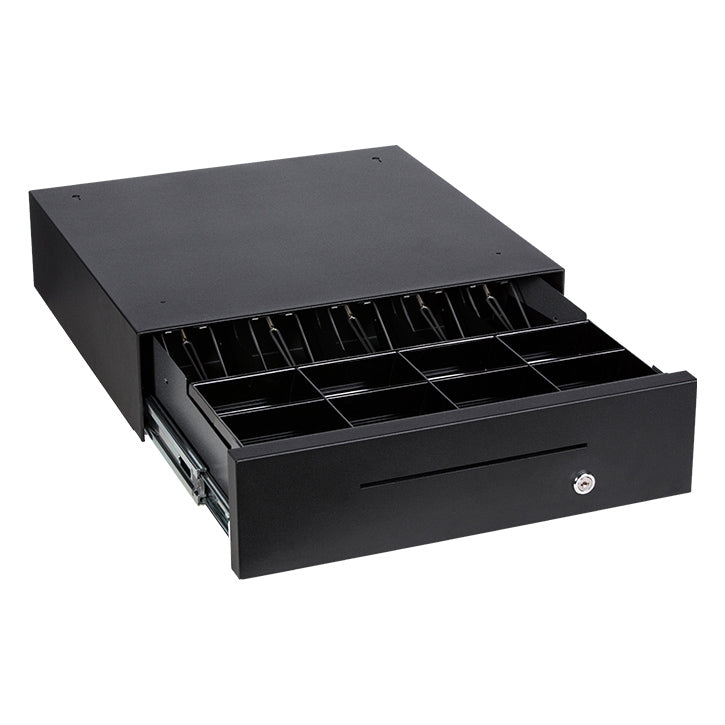

Cash drawer MDX42

*plus VAT

• Robust metal housing with a load capacity of up to 20 kg
• Optimal platform for holding scales and cash register systems
• Removable cash tray with 8 weighable coin cups
• Note insert with 5 bill compartments

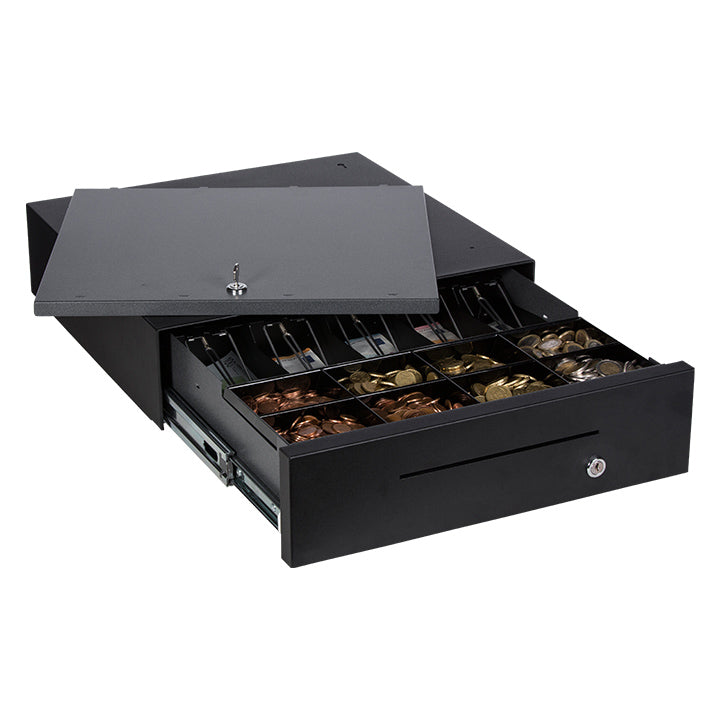

• Removable cash tray with lockable lid
• Insertion slot for receipts and vouchers
• Drawer guide via ball bearing runners
• Keyed alike 3-position cylinder lock

Delivery within 1-2 working days

• Details
• Technical data
• Scope of delivery

• Installation:
  The cash drawer can be mounted on or under the counter.

  Micro switch:
  A microswitch for status inquiry is integrated.

  Electrical connection options:
  Compatible with all systems

  Connection cable:
  Separate, plugged and fixed 2 m cable on RJ11/RJ12 as standard (other systems available on request).

  Lock on cash drawer:
  Keyed alike 3-position cylinder lock (emergency opening, electr. operation, locked) including 2 keys.

  Item number
  29101.030-0020








• Color: black gray / anthracite (RAL 7021)

  Weight: 14 kg

  Voltage: 24 V (12 V on request)

  Width: 420 mm

  Height: 120 mm

  Depth: 420 mm



• • Cash drawer MDX 42 (black gray / anthracite RAL 7021)
  • Separate, plugged 2 m cable to RJ11/RJ12
  • 8 weighable coin cups
  • Removable money insert
  • Lockable lid for the money insert
  • 2 keys for 3-position cylinder lock and the cover lock (same lock).
