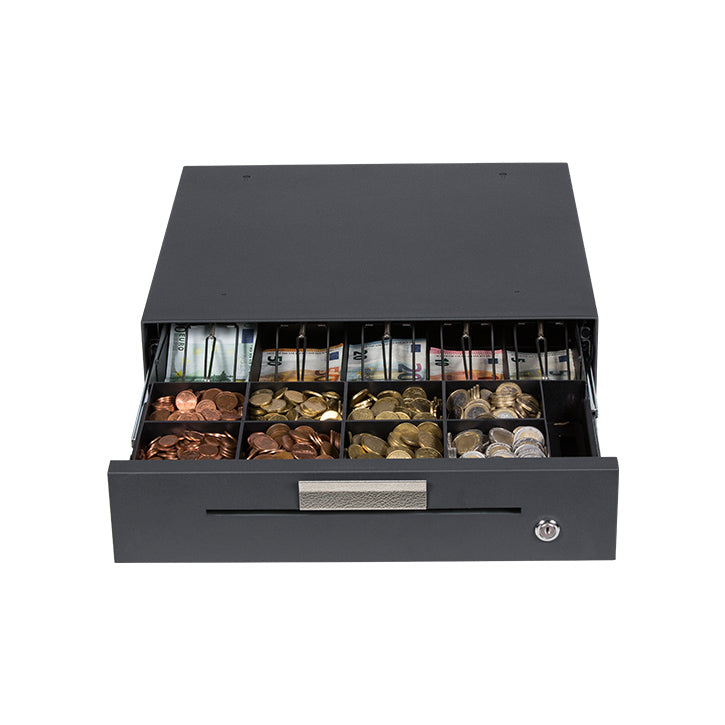

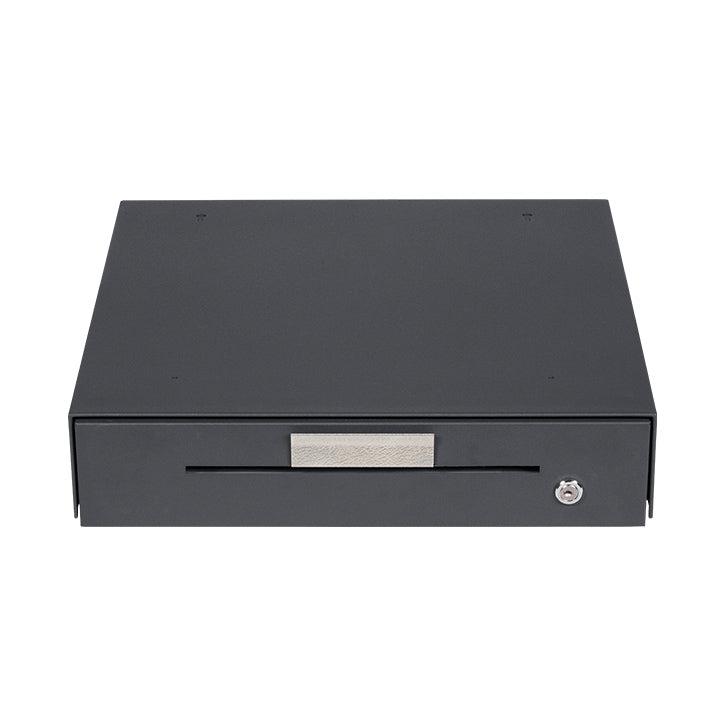

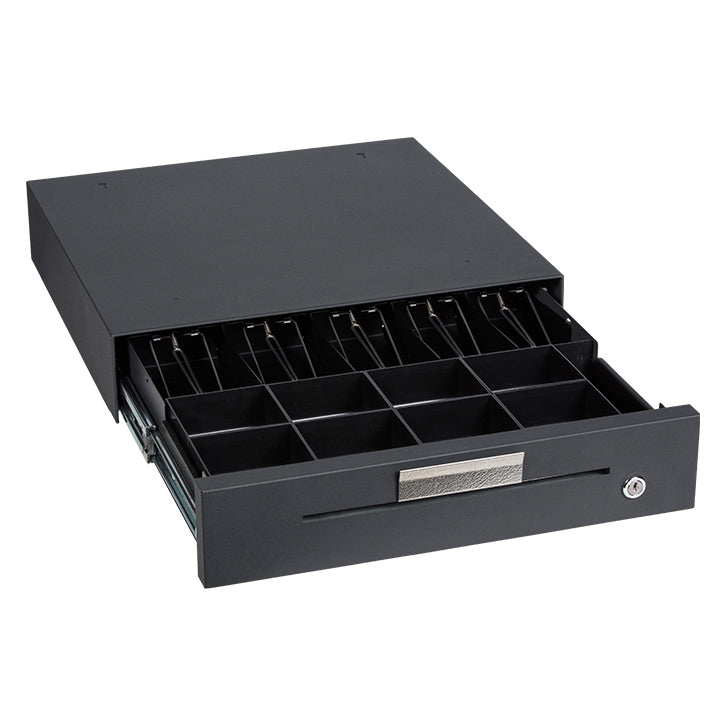

Cash drawer MDX43

• 8 weighable coin cups
• 5 bill compartments with stainless steel hold-downs
• Additional roll money compartment and insertion slot
• Insert cover secured in the store housing
• Drawer guide via ball bearing runners
• 3-position cylinder lock; same or different lock selectable

Delivery within 1-2 working days

• Details
• Technical data
• Scope of delivery

• Installation:
  The cash drawer can be mounted on or under the counter.

  Micro switch:
  A microswitch for status query is integrated.

  Electrical connection options:
  Compatible with all systems.

  Connection cable:
  Separate, plugged 2 m cable to RJ11/RJ12 as standard. (Other systems possible on request).

  Lock on the cash drawer:
  3-position cylinder lock (emergency opening, electr. operation, locked). including 2 keys with 150 locking variants optional.

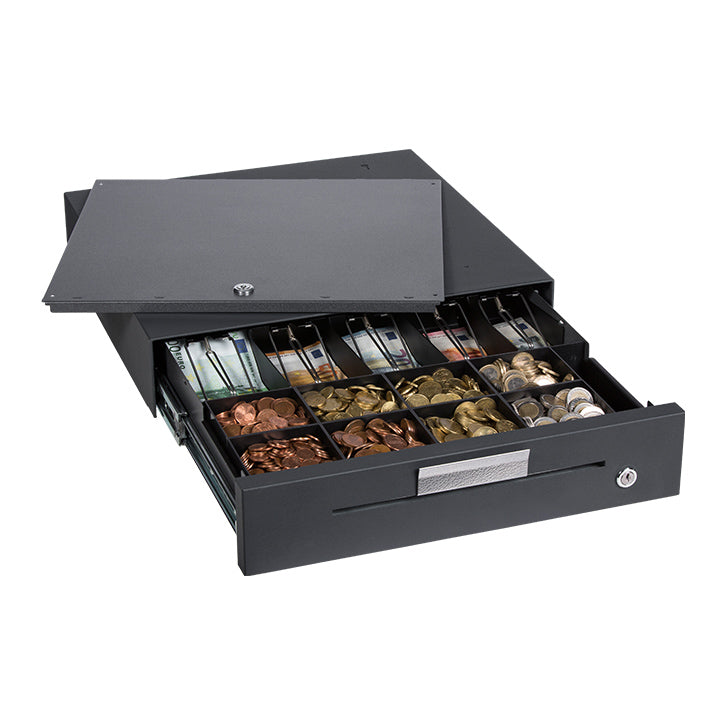

  Cashier insert with lockable lid:
  Lid with 2-position cylinder lock including 2 keys. The insert lid is stored and secured in the housing during checkout time.

• Color: black gray / anthracite (RAL 7021)

  Weight: 17,5 kg

  Voltage: 24 V (12 V on request)

  Width: 420 mm

  Height: 100 mm

  Depth: 420 mm

  Item number: 29101.040-0020



• • MDX 43 cash drawer (black gray/anthracite, RAL 7021)
  • Separate, plugged 2 m cable to RJ11/RJ12
  • 8 weighable coin cups
  • Removable money insert
  • Lockable lid for the money insert
  • 2 keys for 3-position cylinder lock and the cover lock (same lock).
